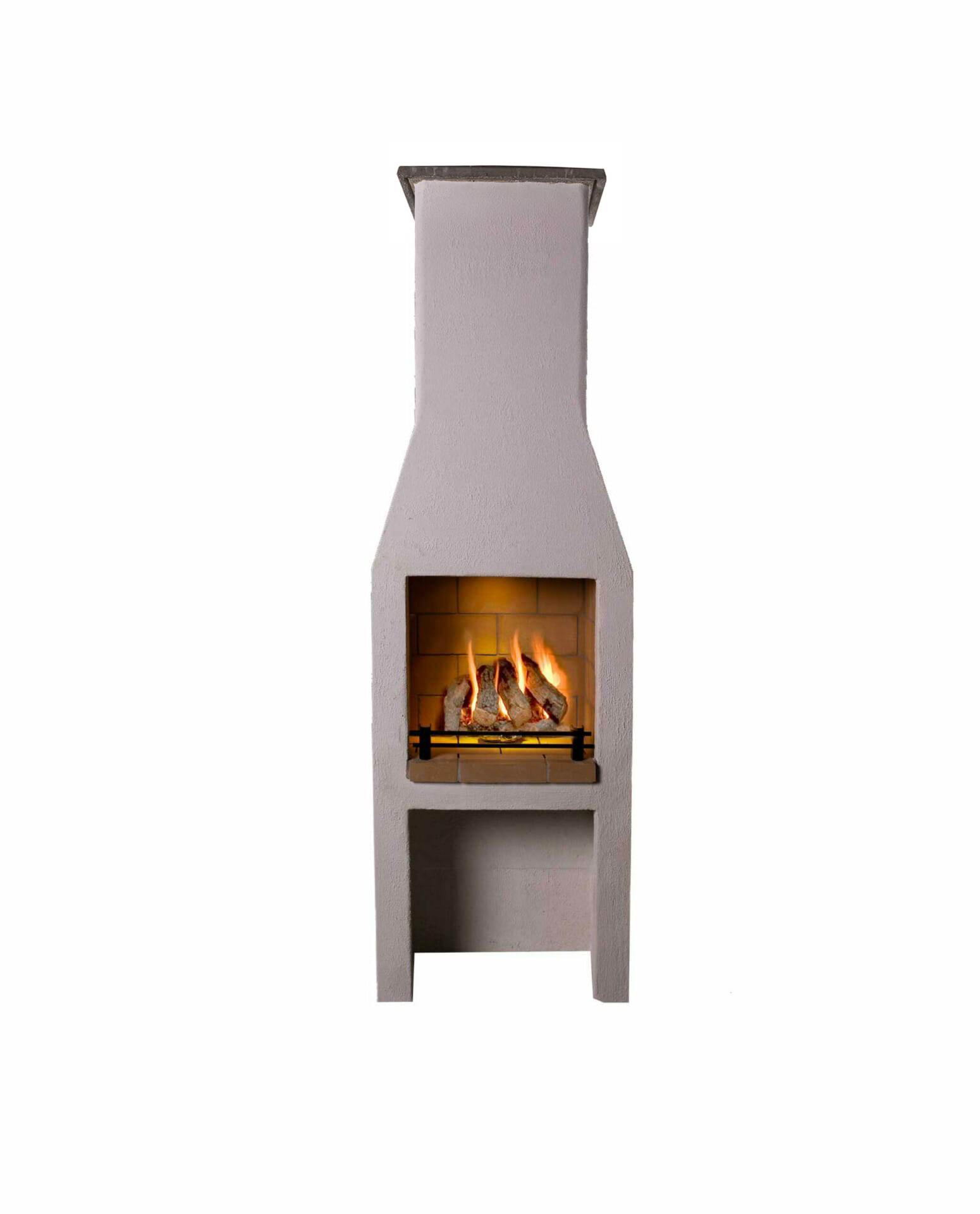

Volcanic Garden Fireplace barbecue – small model

Volcanic Garden Fireplace barbecue – small model

£813.94 ex. VAT

Price including delivery and VAT: £1,060.73

We are offering 10% off with PROMO10

Click here to view our select network of Garden Fireplace displays, public displays, and recommended installers across the UK. Visit a display to see our products in action, connect with an installer, or easily build it yourself. Our kits are straightforward for any competent handy person to assemble—download the instructions below.

The Schiedel Isokern Garden Fireplace is the ideal solution for outdoor living and is perfect to extend the use of your outdoor space during the colder Autumn and Winter months. The natural pumice gives this outdoor fireplace all the insulation needed to have a safe and spectacular focal point of any garden. The relatively small footprint also means that this can be placed against any wall in even the tiniest of gardens or yards.

The kit includes the chimney blocks, the lip glue for assembly, firebrick and also firebrick mortar and a render to either seal the joints or give an entire rendered finish. This also includes the capping.

Optional extras: Additional log stores (one is including in the pack) | Additional chimney blocks | Wave top rain cap.
Delivery: 3-4 weeks delivery (additional stock is being added so this time will be reduced). UK and Ireland delivery only.
Dimensions and weights: Depth 440mm| Width 685mm| Height 2155mm| Weight 460kg.

Volcanic Garden Fireplace barbecue - small model
This item: Volcanic Garden Fireplace barbecue - small model
£813.94 ex. VAT
£813.94 ex. VAT
The below is optional.
Wave top terminal for Small Garden Fireplaces and The Hale
£109.78 ex. VAT
If you order an additional log store, then additional render or glue is not required, as there will be enough in the package itself.
Garden 500 Log Store
£126.79 ex. VAT
If you order additional chimney blocks then please add additional render and glue.
DM44 casing x 300mm high
£42.91 ex. VAT
Lip Glue 5kg
£17.15 ex. VAT
RENDER PLASTER 20 KG
£2.94 ex. VAT
FIREBRICK MORTAR 20KG BAG
£57.96 ex. VAT
Please note that calculations for the render plaster are based on 1kg, so 20 will be added to the basket, but you will receive a single bag with 20kg.
Product code 169566

Description

The kit includes the chimney blocks, the lip glue for assembly, firebrick and also firebrick mortar and a render to either seal the joints or give an entire rendered finish.

  • Garden 500 model comes with a log retainer and barbecue grill which allows the Garden Fireplace to double up as a stunning barbecue.
  • There is also an additional log store available for the 500 model which can be placed either side of the fireplace.

The key advantages of choosing a Schiedel Isokern Garden Fireplace include:

  • Natural volcanic pumice blocks for insulation and safety.
  • Easy to build and all materials are included.
  • Fully load bearing, but requires a sturdy base.
  • Can be built freestanding, raised or built against a wall.
  • Chimney height can be increased by purchasing extra blocks.
  • Can be painted on and designed on with suitable paint.

Additional information

Weight 460 kg
SKU 169566

We offer a network of Garden Fireplace displays and recommended installers across the UK. Visit a display to see our live Garden Fireplaces and Outdoor Kitchens in action, or connect with an installer to build yours.

Close
Get Directions
'; ';
Options hide options
Print Reset
Fetching directions...
TitleCategoryAddressDescriptionLink

Schiedel Isokern Garden Fireplace Installation Guide

Thinking about transforming your outdoor living space with a premium volcanic pumice fireplace or outdoor kitchen? To help you prepare for a seamless installation, we’ve compiled the answers to the most common questions regarding safety clearances, UK planning laws, and environmental regulations.

Structural & Safety Clearances

Can I build my garden fireplace directly onto my timber decking?

No. Due to the substantial structural weight of these premium volcanic pumice packages—which range from 460kg up to 1,490kg fully built—they must never be placed on timber decking.

Instead, they require a flat, solid foundation. We strictly recommend a minimum 100mm thick reinforced concrete base to guarantee the completed structure won’t sink or slant over time.

How close can the fireplace be placed to wooden fencing or a pergola?

Because volcanic pumice is a highly effective, natural insulator, the exterior of the fireplace remains safe to touch. However, a precise buffer zone must be maintained between the structure and any combustible materials:

  • The Hale Outdoor Kitchen: Requires a minimum clearance of 100mm.
  • The Kingham & Standalone Fireplaces (500, 950, 1200 Models): Require a minimum clearance of 75mm.

I want to position the chimney near or through a pergola roof. How high should it go?

The chimney flue must completely clear the height of your pergola canopy to ensure exhaust smoke and sparks disperse safely away from your seating area.

If your design requires extra height to clear an overhanging beam line safely, additional chimney blocks can be purchased separately and added to the vertical stack during assembly. We also highly recommend adding a Rain Cap / Wave canopy to maintain a reliable upward draft and block weather down-drafts.

UK Planning Permission & Boundary Rules

Do I need formal Planning Permission from my local council to install a garden fire?

For the vast majority of residential homes, permanent brick or stone barbecues and outdoor fireplaces fall under Permitted Development rights (similar to garden outbuildings or enclosures). This means they do not require a formal planning application, provided your project meets specific layout criteria.

How close to my neighbor’s boundary line or fence can I build the fireplace?

This depends entirely on the total height of your completed structure (including the chimney capping):

  • Structures up to 2.5m tall: Can be positioned as close to your boundary fence or wall as you like (though we recommend a small gap to make rendering the exterior easier).
  • Structures taller than 2.5m: The entire unit must be shifted forward into your property line so that it sits more than 2 metres away from any boundary line or fence.

What are the absolute height limits if I move it more than 2 metres away from the boundary?

Once your fireplace is positioned safely past the 2-metre boundary zone, your Permitted Development allowances increase:

  • Your structure can go up to a maximum height of 3 metres for standard mono-pitch or custom flat profiles.
  • It can go up to a maximum height of 4 metres only if the structure features a dual-pitched (apex/A-frame) roof line.

Note: If your space is restricted and you cannot move a chimney taller than 2.5m at least 2 metres away from a boundary, you must submit a formal Householder Planning Application to your local council before starting construction.

Are there any extra restrictions if my fireplace is completely freestanding?

Yes. If you plan to install your garden fireplace as a standalone, freestanding unit (rather than building it flush against a solid masonry wall or as part of a fully supported outdoor kitchen layout), you must carefully consider the maximum height for wind safety:

  • Standard Kit Height: Our standard packaged kits are completely load-bearing and fully safety-tested to be freestanding at their delivered heights.
  • Adding Extra Chimney Blocks: While you can easily purchase extra chimney blocks to increase the height of your flue, we strongly advise against extending a freestanding chimney beyond 3 metres in total height without a professional structural review.
  • When to consult an expert: If your property is located in an exceptionally exposed or high-wind area (such as a coastal zone or an elevated hillside), or if your custom design calls for a highly extended freestanding chimney flue, you should consult a qualified structural engineer before building. They will assess your local wind load factors and advise if your specific site requires a deeper concrete foundation pad or specialized internal structural reinforcement.

Are there any other garden layout rules I need to worry about?

  1. No Front Yards: You cannot construct a permanent garden fireplace or structure on land forward of the front facade (principal elevation) of your home. It must be situated to the side or rear.
  2. The 50% Rule: The space occupied by the fireplace, outdoor kitchen modules, and any existing sheds/outbuildings must not collectively take up more than 50% of the total land area surrounding your original house.
  3. Designated Land & Listed Buildings: If your home is legally a Listed Building or sits within a Conservation Area, National Park, or Area of Outstanding Natural Beauty (AONB), permitted development rights are typically restricted or removed. You will need to check with your council before starting any stonework.

Environmental & Smoke Regulations

Can I use my garden fireplace if I live in a designated UK Smoke Control Area?

Yes. While the UK Clean Air Act regulates chimney smoke inside urban areas, unroofed outdoor garden fireplaces and barbecues are broadly exempt from domestic indoor chimney restrictions. However, you can still face local enforcement if your fireplace creates what the law defines as a “Statutory Nuisance.”

What is a “Statutory Nuisance” and how do I avoid it?

Under Section 79 of the Environmental Protection Act, if smoke, ash, or persistent fumes from your garden fire regularly blow directly into a neighbor’s property—preventing them from opening their windows, sitting outside, or hanging out laundry—the local council can issue an Abatement Notice.

To avoid this, always position your fireplace where prevailing winds won’t push smoke directly toward neighboring windows, and extend your chimney height if necessary to discharge smoke cleanly upwards.

What fuels am I legally allowed to burn?

To ensure a clean, efficient burn, you should strictly use clean, dry, and seasoned wood logs—ideally labeled with the Woodsure “Ready to Burn” logo, which certifies a moisture content below 25%.

Never Burn: Treated or painted waste wood, old pallets, plastic, or household rubbish. Burning these materials releases volatile, toxic chemicals into the air, creates heavy dark smoke, and leads to an immediate buildup of corrosive tar within your chimney structure.

For Garden Fireplaces, namely the Small, Medium, Large, Hale and Kingham, we offer kerbside delivery only and the vehicles cannot navigate small lanes and paths, etc.

If you do have an issue with location, then please contact us prior to purchase, as we can offer a solution involving smaller delivery vehicles, but at an extra costs, as there could be multiple deliveries.
