Sirius Model 1 – Wood Burning Stove / Permeter Flue System – Bungalow

Sirius Model 1 – Wood Burning Stove / Permeter Flue System – Bungalow

From £3,330.21 ex. VAT

Energy Efficient Design | Wood Burning Stove. Schiedel offers a unique all-in-one system: a perfect union of wood stove & chimney, which is an ideal package when if you are a self-builder or renovating your home.

Sirius 1 Log Burning Stove with a a large front window. The touching point to open the door is marked with powder coated circle, preventing scratches in the varnish.

Sirius 3G Log Burning Stove. This contemporary model has a large glass front window and door and additional side windows for an impressive 180° degree view.



Our innovative and advanced clean burning technology provides an eco-friendly and pleasant warmth. Wood stoves achieve up to 84 % energy-efficiency – delivering more heat with less wood and are far more likely to heat larger rooms more efficiently than traditional radiators.

The Sirius Stove Package perfectly combines the Schiedel technologically high-end Permeter Chimney System with the energy-efficient, stylish and space saving wood stoves.

STOVE-HIGHLIGHTS
Highly efficient up to 84%! More heat, less wood
Highest European and National Standards – EN 13 240, DIN+, 1.BImSchV2, DiBt, 15a B-VG, NS 3058/3059
Easy to operate with Self closing door and interlock system for igniting or cleaning purpose
3 Windows for 180° view in the 3G model
Eco-friendly corpus paint resulting in environmentally friendly low smoke and low emission colour
Adjustable legs to adapt to uneven surfaces

SYSTEM HIGHLIGHTS
Combustion air independent from installation room, provided through Permeter Smooth Air Chimney from top, allows flexible placement
Due to system solution, no separate air channel adaptor/ bypass necessary.

IDEAL FOR TIMBER FRAME BUILDINGS SUCH AS LOG CABINS
Ceiling Box and Protect Box options for complete safety in timber framed buildings.
Exceptional small distances to combustibles

SKU: Sirius Model 1 - Wood Burning Stove / Permeter Flue System - Bungalow Categories: ,

Description

Details SIRIUS 1 SIRIUS 3G
Width 512mm 512 mm
Height 1218mm 1218 mm
Depth 392mm 392 mm
Output 5,9 kW 5,5 kW
Efficiency 84% 82 %
Energy efficiency A+ A+
Weight 200 kg 210 kg
Air independent
Triple-air-connection



APPROVALS
EN 13 240
DIN+, BImSchV 2, CE
15a B-VG
NS 3058 / 3059
DEFRA EXEMPT
CLEARSKIES LEVEL 5

DEFRA exempt
In addition to meeting the requirements of Ecodesign for efficiency and emissions, all clearSkies certified appliances at Level 3 or above will also have been verified by the scheme administrator as meeting the requirements for Defra exemption.

Therefore you can be assured that our Sirius 1 and Sirius 3G models exceed the minimum requirements and are future proofed as well as approved on the Defra website to be installed in Smoke Control Areas

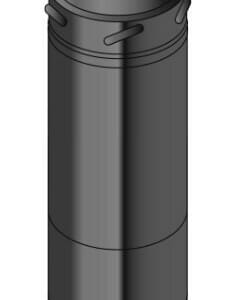

The Permeter Smooth Air Chimney System provided with the Sirius stove is a steel chimney with air supply offers great flexibility and flexible placement.

All Sirius models are approved by the highest European standards for air independent use. This allows the combined usage with ventilation systems in modern buildings and guarantees a healthy indoor environment.

Schiedel Permeter Smooth Air chimney is constructed with a separate inlet-duct ensuring that the stove is supplied with the optimal amount of combustion air from the top of the pipe. The double insulated pipes avoid condensation.

Product description
Product description Modular, concentric flue system for oper- ation with room sealed Wood appliances with continuous operating temperature up to 600 °C.
Installation Inside a building
Fuel Wood
Operating temperature ≤ 600 °C
Mode of operation – negative pressure (N1 ≤ 40 Pa)
– dry
Inner pipe material EN 1.4404 (AISI 316L)
Outer case material – galvanized steel, powder painted
– 1.4301 (304) stainless steel
Outer case finish – black (RAL 9005)
Insulation type PMSA 25: 25 mm thick mineral wool tube, with aluminium lamination.
Insulation density 128 kg/m3
Thermal resistance PMSA 25 = 0,37 m2K/W
Mean roughness 1,0 mm according to EN 13384-1
Height above last structural support Max free standing height is 2m.
Where height is >600mm above the last structural support, a locking band is re- quired immediately below the roof support and on any pipe joints above it.
Distance between lateral supports 3,0 m



CE Certificate number EN 1856-1: CE Designation EN 1856-1:
0036 – CPR – 91236 – 034 T400 N1 D V3 L50050 G75
With Ceiling Box and Protect Box with in Bungalow
0036 – CPR – 91236 – 034 T400 N1 D V3 L50050 G100
With Ventilated Firestop Plate in a combustible shaft with combus- tible floors



Details
Internal diameter: 150 mm
External diameter: 250 mm
Inner liner thickness: 0,6 mm
Outer wall thickness: 0,6 mm
Weight: 7,7 kg/m
