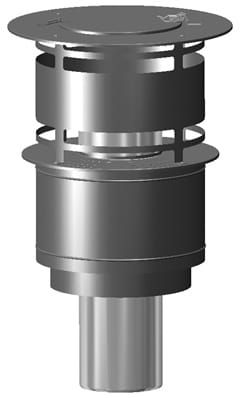

Terminal

Terminal

£219.42 ex. VAT

EAN: 4051921052056 SKU: 116577 Category: Tags: , , ,

Description

AS_terminal 150/-/-/444/BL/PMSA25

Additional information

Weight 4 kg
SKU 116577

Sirius brochure

Sirius installation instructions

Sirius stove / Permeter Smooth Air brochure

The Permeter Smooth Air Chimney System provided with the Sirius stove is a steel chimney with air supply offers great flexibility and flexible placement.

All Sirius models are approved by the highest European standards for air independent use. This allows the combined usage with ventilation systems in modern buildings and guarantees a healthy indoor environment.

Schiedel Permeter Smooth Air chimney is constructed with a separate inlet-duct ensuring that the stove is supplied with the optimal amount of combustion air from the top of the pipe. The double insulated pipes avoid condensation.

Product description
Product description Modular, concentric flue system for oper- ation with room sealed Wood appliances with continuous operating temperature up to 600 °C.
Installation Inside a building
Fuel Wood
Operating temperature ≤ 600 °C
Mode of operation – negative pressure (N1 ≤ 40 Pa)
– dry
Inner pipe material EN 1.4404 (AISI 316L)
Outer case material – galvanized steel, powder painted
– 1.4301 (304) stainless steel
Outer case finish – black (RAL 9005)
Insulation type PMSA 25: 25 mm thick mineral wool tube, with aluminium lamination.
Insulation density 128 kg/m3
Thermal resistance PMSA 25 = 0,37 m2K/W
Mean roughness 1,0 mm according to EN 13384-1
Height above last structural support Max free standing height is 2m.
Where height is >600mm above the last structural support, a locking band is re- quired immediately below the roof support and on any pipe joints above it.
Distance between lateral supports 3,0 m



CE Certificate number EN 1856-1: CE Designation EN 1856-1:
0036 – CPR – 91236 – 034 T400 N1 D V3 L50050 G75
With Ceiling Box and Protect Box with in Bungalow
0036 – CPR – 91236 – 034 T400 N1 D V3 L50050 G100
With Ventilated Firestop Plate in a combustible shaft with combus- tible floors



Details
Internal diameter: 150 mm
External diameter: 250 mm
Inner liner thickness: 0,6 mm
Outer wall thickness: 0,6 mm
Weight: 7,7 kg/m
