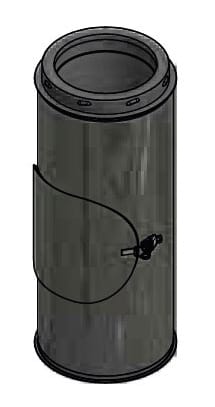

Vantage Inspection pipe

Vantage Inspection pipe

Stocks available. Please contact us on 0191 4161150 or email sales.uk@schiedel.com to purchase this product. List pricing is shown below.

Download the brochure for dimensions and other details.

[wpdm_package id=’41781′]

165421 INSP_PIPE_NP 125/75/0.5/316/BA/EX 48.00
165422 INSP_PIPE_NP 125/75/0.5/316/BLACK/EX 55.20
165423 INSP_PIPE_NP 150/75/0.5/316/BA/EX 50.36
165424 INSP_PIPE_NP 150/75/0.5/316/BLACK/EX 62.94

Vantage is a quality twin wall chimney system with a quick lock jointing system. It is used for wood burning or for solid fuel stoves.

With a quick lock jointing system. The components have a twin wall construction with a male spigot and a female socket to provide simple and rapid installation.

With its fully sealed components, Vantage can be installed both internally and externally. Vantage is supplied with a ten year conditional warranty.

SKU: vantage-0012 Categories: ,

Description

Applicationsย

  • Gas-fired stoves
  • Wood-fired stoves
  • Approved solid fuels
  • Oil-fired appliances

Key features

  • 10 year warranty
  • Suitable for internal and external applications Distance to combustibles 60mm (50mm in free air)
  • Also available in black powder coated finish
  • Easy to install Twist-lock system Weatherproof, fully sealed components High density, mineral wool insulation Made from high grade stainless steel
  • 316L stainless steel inner wall for the highest corrosion resistance
  • 304 stainless steel outer wall in an attractive, polished finish
Technical characteristics
Application Chimney/Flue system
Operating mode Dry
Pressure Negative pressure
Operating Temperature 450 oC / 600 oC
Thermal Shock 1000 oC [max 30 min]
Inner Wall material AISI 316L/EN 1.4404
thickness 0.5 mm
Outer wall material AISI 304 BA/EN 1.4301
thickness 0.5 mm
Insulation type Mineral wool
thickness 25 mm
Fuel Type Wood/Gas/Oil/Approved Solid Fuels
ID mm 125(5”)ย  150(6”)ย  175(7”)ย  200(8”)
OD mm 175 200 230 250
Cross section cm2 123 177 241 314
Weight ยฑkg/m 5.5 6.5 7.5 8.0
Chimney diameter
The chimney size should be as recommended by the appliance manufacturer. Where there is a requirement for a flue diameter smaller than the appliance spigot, then the operational requirements of the appliance and the configuration of the flue must satisfy the flue sizing requirements of EN13384โ€”1 for single appliances.
CE approved
EN1856: T450 N1 D V3 L50050 G50 [in free air]
EN1856: T450 N1 D V3 L50050 G60 [in a combustible shaft with ventilated fire stops]
EN1856: T600 N1 D V3 L50050 G100 [in a combustible shaft with ventilated fire stops]
