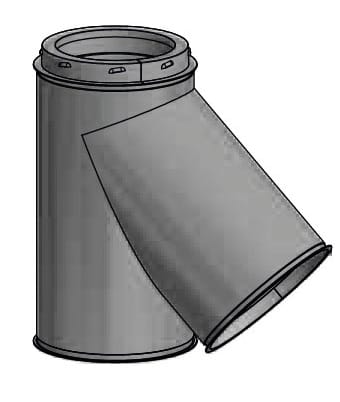

Vantage Tees and tee caps / condensate collectors

Vantage Tees and tee caps / condensate collectors

Vantage Tees and tee caps / condensate collectors

Stocks available. Please contact us on 0191 4161150 or email sales.uk@schiedel.com to purchase this product. List pricing is shown below.

Download the brochure for dimensions and other details.

[wpdm_package id=’41781′]

165583 T_PCS 125/45/0.5/316/BA/EX 42.51
165584 T_PCS 125/45/0.5/316/BLACK/EX 53.14
165585 T_PCS 150/45/0.5/316/BA/EX 42.58
165586 T_PCS 150/45/0.5/316/BLACK/EX 53.23
165587 T_PCS 175/45/0.5/316/BA/EX 56.92
165588 T_PCS 175/45/0.5/316/BLACK/EX 71.14
165589 T_PCS 200/45/0.5/316/BA/EX 62.83
165590 T_PCS 200/45/0.5/316/BLACK/EX 78.54
165591 T_PCS 125/90/0.5/316/BA/EX 36.16
165592 T_PCS 125/90/0.5/316/BLACK/EX 45.20
165593 T_PCS 150/90/0.5/316/BA/EX 38.19
165594 T_PCS 150/90/0.5/316/BLACK/EX 47.74
165595 T_PCS 175/90/0.5/316/BA/EX 50.89
165596 T_PCS 175/90/0.5/316/BLACK/EX 63.62
165597 T_PCS 200/90/0.5/316/BA/EX 54.67
165598 T_PCS 200/90/0.5/316/BLACK/EX 68.35
165599 END_CAP_TEE 125/____/1/304/BA/EX 6.68
165600 END_CAP_TEE 125/____/1/304/BLACK/EX 8.34
165601 END_CAP_TEE 150/____/1/304/BA/EX 6.68
165602 END_CAP_TEE 150/____/1/304/BLACK/EX 8.34
165603 END_CAP_TEE 175/____/1/304/BA/EX 8.02
165604 END_CAP_TEE 175/____/1/304/BLACK/EX 10.02
165605 END_CAP_TEE 200/____/1/304/BA/EX 8.19
165606 END_CAP_TEE 200/____/1/304/BLACK/EX 10.24
165513 CONDENS_COL_W_DR 125/90/0.5/316/BA/EX 12.80
165514 CONDENS_COL_W_DR 125/90/0.5/316/BLACK/EX 15.99
165515 CONDENS_COL_W_DR 150/90/0.5/316/BA/EX 13.12
165516 CONDENS_COL_W_DR 150/90/0.5/316/BLACK/EX 16.40
165517 CONDENS_COL_W_DR 175/90/0.5/316/BA/EX 15.65
165518 CONDENS_COL_W_DR 175/90/0.5/316/BLACK/EX 19.56
165519 CONDENS_COL_W_DR 200/90/0.5/316/BA/EX 16.27
165520 CONDENS_COL_W_DR 200/90/0.5/316/BLACK/EX 20.34

Vantage is a quality twin wall chimney system with a quick lock jointing system. It is used for wood burning or for solid fuel stoves.

With a quick lock jointing system. The components have a twin wall construction with a male spigot and a female socket to provide simple and rapid installation.

With its fully sealed components, Vantage can be installed both internally and externally. Vantage is supplied with a ten year conditional warranty.

SKU: vantage-0017 Categories: ,

Description

Applications

  • Gas-fired stoves
  • Wood-fired stoves
  • Approved solid fuels
  • Oil-fired appliances

Key features

  • 10 year warranty
  • Suitable for internal and external applications Distance to combustibles 60mm (50mm in free air)
  • Also available in black powder coated finish
  • Easy to install Twist-lock system Weatherproof, fully sealed components High density, mineral wool insulation Made from high grade stainless steel
  • 316L stainless steel inner wall for the highest corrosion resistance
  • 304 stainless steel outer wall in an attractive, polished finish
Share on TwitterShare on FacebookShare on WhatsAppShare on LinkedInShare on Pinterest
Technical characteristics
Application Chimney/Flue system
Operating mode Dry
Pressure Negative pressure
Operating Temperature 450 oC / 600 oC
Thermal Shock 1000 oC [max 30 min]
Inner Wall material AISI 316L/EN 1.4404
thickness 0.5 mm
Outer wall material AISI 304 BA/EN 1.4301
thickness 0.5 mm
Insulation type Mineral wool
thickness 25 mm
Fuel Type Wood/Gas/Oil/Approved Solid Fuels
ID mm 125(5”)  150(6”)  175(7”)  200(8”)
OD mm 175 200 230 250
Cross section cm2 123 177 241 314
Weight ±kg/m 5.5 6.5 7.5 8.0
Chimney diameter
The chimney size should be as recommended by the appliance manufacturer. Where there is a requirement for a flue diameter smaller than the appliance spigot, then the operational requirements of the appliance and the configuration of the flue must satisfy the flue sizing requirements of EN13384—1 for single appliances.
CE approved
EN1856: T450 N1 D V3 L50050 G50 [in free air]
EN1856: T450 N1 D V3 L50050 G60 [in a combustible shaft with ventilated fire stops]
EN1856: T600 N1 D V3 L50050 G100 [in a combustible shaft with ventilated fire stops]
