Description
ICIDย Plus is a multi-application system adaptable for Dry (D), Fu (W) and even Positive Pressure (P) applications.ย
ICID Plus is ideal not only for traditional stoves but also for pellet stoves, biomass appliances,

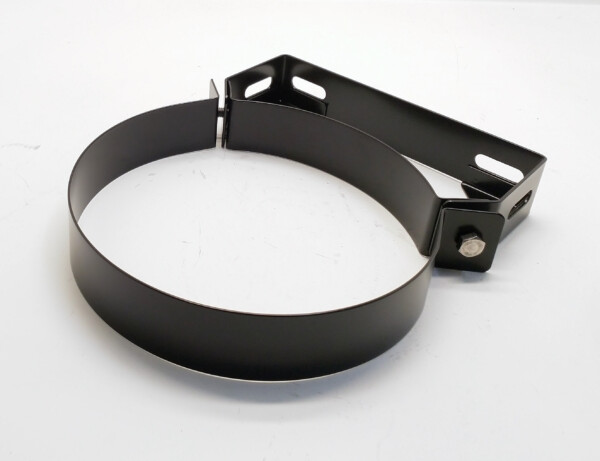

This item is used to fix the chimney to a supporting wall and provides lateral support only at a fixed distance of 60mm.
ICIDย Plus is a multi-application system adaptable for Dry (D), Fu (W) and even Positive Pressure (P) applications.ย
ICID Plus is ideal not only for traditional stoves but also for pellet stoves, biomass appliances,
For stove and chimney installers – whenever you register an installation with our easy to use, online guarantee registration portal, you will now accrue points based on the number of installations. So click here to start and register your installations, taking full advantage of our Lifetime Guarantee on Flex and ICID, as well as guarantees on all our other ranges, and to start earning points ๐
Click here to view Certificates and Declarations of Performance
Schiedel is the first European chimney manufacturer to have performed the tests according to this latest fire resistance standard for chimneys. European standard BS EN 1366-13:2019 โFire resistance tests for service installations, Part 13: Chimneysโ and has reached EI 120 classification for our Double Wall Insulated System Chimney ICS in a closed scenario (type A) for both vertical and horizontal set-ups.
ICS is CE Certified to EN1856-1 TรV 0036 CPR 9195 001 with designations
ICS is CE Certified to EN1856-2 TรV 0036 CPR 9195 041 with designations
System Chimney EN1856-1
T450 N1 W V2 L50050 G60
T450 N1 D V3 L50050 G60
60mm Distance to combustibles in a combustible shaft*
T450 N1 W V2 L50050 G50
T450 N1 D V3 L50050 G50
50mm Distance to combustibles in a non combustible shaft or in free air*
T200 P1 W V2 L50050 O00
Zero distance to combustibles*
Connecting Flue Pipe EN1856-2
T450 N1 D V2 L50050 G100 M
A useful app with guides on installation as well as step-by-step video guides.
This app was designed for installers to have all the information they require in a few quick clicks. This makes it easier for installers rather than having to carry paperwork during the installation process with video breakdowns of each stage of the installation process.
Download the iPhone and iPad version in the App Store and Android version in the Google Play Store.
We are confident in our products and so offer you (the owner) a generous guarantee in relation to the ICID system (the System).
Provided that you comply in full with Your Responsibilities (below) and subject to the Small Print (below), we guarantee to you that the System will be free from defects for whichever is the greater of:
a period equal to the guarantee period of the appliance to which the system is first connected; or
20 years.
For example, if your System is fitted to an appliance with a guarantee period of 10 years, we will still guarantee your System for 20 years.
In the unlikely event that the System becomes defective during the guarantee period, we will provide a like-for-like replacement for free (subject to your compliance with Your Responsibilities and subject to the Small Print). If the same model is no longer available, we will replace it with a suitable alternative.
When we say โno quibblesโ we mean it and so the guarantee we offer is a straightforward one; weโve set out below what is covered and what isnโt by the guarantee as well as how to ensure you benefit from it.
YOUR RESPONSIBILITIES
To benefit from our guarantee, you must:
Register your product within 30 days of installation at www.schiedel.co.uk and provide us with any evidence we reasonably request to prove that your System has been fitted by a HETAS approved installer or if not, has been signed off by a Building Control Inspector prior to use.
Familiarise yourself with the User Guide and comply with its provisions in full during the lifetime of your usage of the Liner (including by keeping the required records safe). Failure to do so will invalidate any guarantee claim.
HOW TO CLAIM UNDER YOUR GUARANTEE
To claim under your guarantee, please email us at info@schiedel.co.uk.ย You will be asked to provide proof that you have complied in full with the User Guide (for example, by providing cleaning records) and we will then assess your claim, keeping you fully informed.
SMALL PRINT
ICID Plus is CE Certified to EN1856-1 TรV 0036 CPR 9195 010 with designations:
ICID Plus is CE Certified to EN1856-2 TรV 0036 CPR 9195 042 with designations:
System Chimney EN1856-1
T450 N1 W V2 L50050 G60
T450 N1 D V3 L50050 G60
60mm Distance to combustibles running through a combustible floor using G60 round firestop
T450 N1 W V2 L50050
G50 T450 N1 D V3 L50050 G50
50mm Distance to combustibles a) running through a combustible floor using G50 ventilated fire stops b) In a ventilated shaft using G50 or G60 round ventilated fire stops in combination with G50 ventilated support plate at base and G50 ventilated fire stop plate at top of shaft. c) In free air
T200 P1 W V2 L50050 O00
Zero distance to combustibles
Connecting Flue Pipe EN1856-2
T450 N1 D V2 L50050 G100 M
ICID installation instructions
