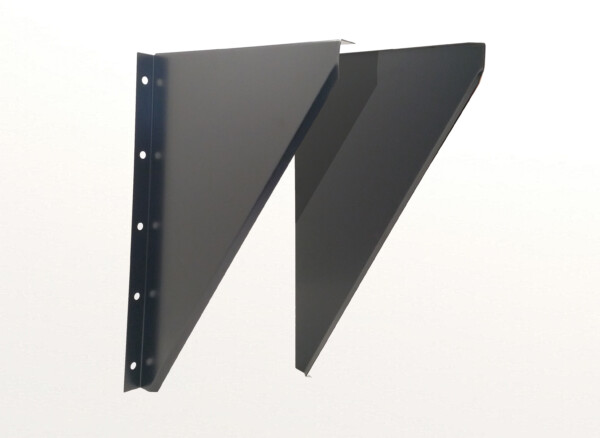

Wall support side plates
Wall support side plates
This product is part of Schiedel’s accessory range which can be used on a variety of systems. Please consult with our customer service team for advice on it’s suitability.
Schiedel have a range of chimney and flue components suitable for all types of appliances, from wood stoves to CHP system and gas boiler system to data centre generators, and more.
SKU: Wall support side plates
Categories: Steel Accessories, Support components, Support components, Support Components, UK Plus, Support Components, Universal Accessories
Tags: Steel, Base support, Accessories BL Steel
Available Options:
- Installer Rewards
- UK Plus downloads
- UK Plus approvals
- ICS 5000 approvals
- ICS 5000 downloads
- ICS downloads
- ICS approvals
Click here to view Certificates and Declarations of Performance
EN 1856-1 System chimney CE Designation:
036 – CPR – 91236-057 Production: Teplice (CZ)
T200 – P1 – W – V2 – L50040 – O00
T200 – P1 – W – Vm – L20040 – O50
T600 – N1 – W – V2 – L50040 – O50
T600 – N1 – W – Vm – L20040 – O50
EN 1856-2 Connecting flue pipe CE Designation:
0036 – CPR – 91236-058 Production: Teplice (CZ)
T200 – P1 – W – V2 – L50040 – O30
T200 – P1 – W – Vm – L20040 – O30
Schiedel is the first European chimney manufacturer to have performed the tests according to this latest fire resistance standard for chimneys. European standard BS EN 1366-13:2019 “Fire resistance tests for service installations, Part 13: Chimneys” and has reached EI 120 classification for our Double Wall Insulated System Chimney ICS in
a closed scenario (type A) for both vertical and horizontal set-ups.
ICS 5000 is tested and approved in both 25mm and 50mm variants to BS EN 1856-1 as a System Chimney and to BS EN 1856-2 as a connecting flue pipe with the following designations
System Chimney BS EN 1856-1 (TÜV 0036 CPR 9195 027)
ICS25 5000
T600 H1 D V3 L50050 O75* T200 H1 W V2 L50050 O50**
*Distance to Combustibles
*Ø80-Ø300 distance – 75mm
*Ø350-Ø450 distance – 112.5mm
*Ø500- Ø600 distance – 150mm
**Ø80-Ø200 distance – 50mm
ICS50 5000
T600 H1 D V3 L50050 O25*
*Distance to Combustibles
*Ø80-Ø300 distance – 25mm
*Ø350-Ø450 distance – 37.5mm
*Ø500- Ø600 distance – 50mm
Connecting Flue Pipe BS EN 1856-2 (TÜV 0036 CPR 9195 038)
T600 H1 D V3 L50050 O100 M
Connecting Flue Pipe BS EN 1856-2 (TÜV 0036 CPR 9195 036)
T600 H1 D V3 L50050 O100 M
EI 120 Fire rating to BS EN 1366-13 Chimneys
ICS25 5000 and ICS50 5000: Horizontal and Vertical
Corrosion testing on Gas, Oil, Solid Fuel (TÜV 0036 CPR 9195 027)
Gastec, MPA,TÜV
ICS 5000 installation instructions
Click here to view Certificates and Declarations of Performance
Click here to view Certificates and Declarations of Performance
Schiedel is the first European chimney manufacturer to have performed the tests according to this latest fire resistance standard for chimneys. European standard BS EN 1366-13:2019 “Fire resistance tests for service installations, Part 13: Chimneys” and has reached EI 120 classification for our Double Wall Insulated System Chimney ICS in a closed scenario (type A) for both vertical and horizontal set-ups.
ICS is CE Certified to EN1856-1 TÜV 0036 CPR 9195 001 with designations
ICS is CE Certified to EN1856-2 TÜV 0036 CPR 9195 041 with designations
System Chimney EN1856-1
T450 N1 W V2 L50050 G60
T450 N1 D V3 L50050 G60
60mm Distance to combustibles in a combustible shaft*
T450 N1 W V2 L50050 G50
T450 N1 D V3 L50050 G50
50mm Distance to combustibles in a non combustible shaft or in free air*
T200 P1 W V2 L50050 O00
Zero distance to combustibles*
Connecting Flue Pipe EN1856-2
T450 N1 D V2 L50050 G100 M
- Manufactured under a Quality Management Scheme approved to BS EN ISO 9001
- 4 Hour Fire Rating to BS476 Part 20
- Certified for corrosion resistance on gas, oil and solid fuel by Gastec, MPA and TÜV
- HETAS listed for use on solid fuel applications.
