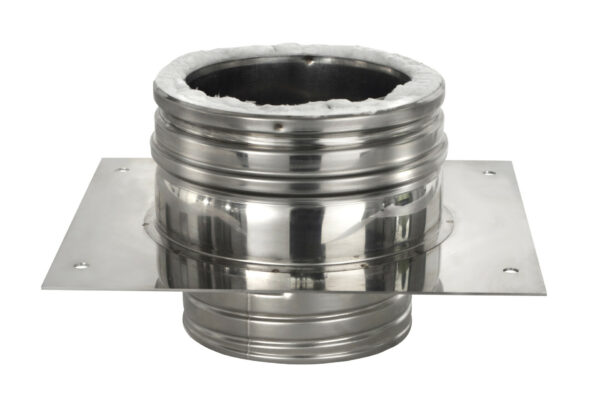

Adaptor – Tecnoflex Liners Plus to ICS 25 – Flexible Liners
Adaptor – Tecnoflex Liners Plus to ICS 25 – Flexible Liners
This item is used to extend an existing traditional brick or block chimney is required in order to meet termination guidelines. The base is secured to the existing chimney and then sections of standard ICS can be built up to the required termination height.
TecnoFlex Plus is a twin skin flexible chimney liner designed for gas, oil and multi-fuel, where the maximum flue gas temperature does not exceed 600°C. Diameter range 80 – 300mm. Flex Liners come with a Lifetime Guarantee*
Flexible Flue Twin Wall Liner
Corrugated outer skin for high crush resistance.
Extra smooth inner skin allows for easy drain down of condensates, less opportunity for soot to collect in the joint area and ease of sweeping.
Engineered joint design gives extra strength and flexibility.
Inner skin remains smooth and protective even after the rigours of installation.
Now with Lifetime*Guarantee.
Triplelock Plus is a single wall stainless steel flexible flue liner designed for atmospheric gas and kerosene appliances where the flue gas temperature does not exceed 260°C. Diameter range Triplelock plus 100 – 200mm.
Flexible Flue Single Wall Liner
Made from corrosion-resistant 316L stainless steel.
Leak resistant construction due to dovetail folded seam.
Deep corrugations for high crush resistance and better flexibility when installing.
Strong seam construction resists the rigours of pulling the liner into place during construction.
For stove and chimney installers – whenever you register an installation with our easy to use, online guarantee registration portal, you will now accrue points based on the number of installations and installation type. So start to register your installations, taking full advantage of our Lifetime Guarantee on Flex and ICID, as well as guarantees on all our other ranges, and to start earning points 🙂
Schiedel is the first European chimney manufacturer to have performed the tests according to this latest fire resistance standard for chimneys. European standard BS EN 1366-13:2019 “Fire resistance tests for service installations, Part 13: Chimneys” and has reached EI 120 classification for our Double Wall Insulated System Chimney ICS in a closed scenario (type A) for both vertical and horizontal set-ups.
ICS is CE Certified to EN1856-1 TÜV 0036 CPR 9195 001 with designations
ICS is CE Certified to EN1856-2 TÜV 0036 CPR 9195 041 with designations
System Chimney EN1856-1
T450 N1 W V2 L50050 G60
T450 N1 D V3 L50050 G60
60mm Distance to combustibles in a combustible shaft*
T450 N1 W V2 L50050 G50
T450 N1 D V3 L50050 G50
50mm Distance to combustibles in a non combustible shaft or in free air*
T200 P1 W V2 L50050 O00
Zero distance to combustibles*
Connecting Flue Pipe EN1856-2
T450 N1 D V2 L50050 G100 M
Manufactured under a Quality Management Scheme approved to BS EN ISO 9001
4 Hour Fire Rating to BS476 Part 20
Certified for corrosion resistance on gas, oil and solid fuel by Gastec, MPA and TÜV
