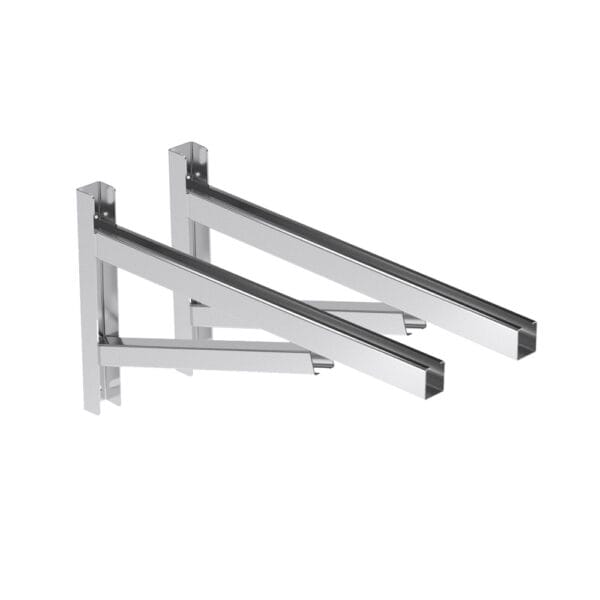

The cantilever support arms come in a pair. These are suitable for larger diameter flue systems where the cantilever supports can securely hold an external chimney system for commercial applications.
Please check with the flue guide on the load bearing capacity.
PRODUCT FEATURESFor stove and chimney installers – whenever you register an installation with our easy to use, online guarantee registration portal, you will now accrue points based on the number of installations. So click here to start and register your installations, taking full advantage of our Lifetime Guarantee on Flex and ICID, as well as guarantees on all our other ranges, and to start earning points 🙂
Schiedel is the first European chimney manufacturer to have performed the tests according to this latest fire resistance standard for chimneys. European standard BS EN 1366-13:2019 “Fire resistance tests for service installations, Part 13: Chimneys” and has reached EI 120 classification for our Double Wall Insulated System Chimney ICS in
a closed scenario (type A) for both vertical and horizontal set-ups.
ICS 5000 is tested and approved in both 25mm and 50mm variants to BS EN 1856-1 as a System Chimney and to BS EN 1856-2 as a connecting flue pipe with the following designations
System Chimney BS EN 1856-1 (TÜV 0036 CPR 9195 027)
ICS25 5000
T600 H1 D V3 L50050 O75* T200 H1 W V2 L50050 O50**
*Distance to Combustibles
*Ø80-Ø300 distance – 75mm
*Ø350-Ø450 distance – 112.5mm
*Ø500- Ø600 distance – 150mm
**Ø80-Ø200 distance – 50mm
ICS50 5000
T600 H1 D V3 L50050 O25*
*Distance to Combustibles
*Ø80-Ø300 distance – 25mm
*Ø350-Ø450 distance – 37.5mm
*Ø500- Ø600 distance – 50mm
Connecting Flue Pipe BS EN 1856-2 (TÜV 0036 CPR 9195 038)
T600 H1 D V3 L50050 O100 M
Connecting Flue Pipe BS EN 1856-2 (TÜV 0036 CPR 9195 036)
T600 H1 D V3 L50050 O100 M
EI 120 Fire rating to BS EN 1366-13 Chimneys
ICS25 5000 and ICS50 5000: Horizontal and Vertical
Corrosion testing on Gas, Oil, Solid Fuel (TÜV 0036 CPR 9195 027)
Gastec, MPA,TÜV
ICS 5000 installation instructions
Click here to view Certificates and Declarations of Performance
