Ignis Protect 45 / 90 Degree Version

Name: Ignis Protect 45 / 90 Degree Version
SKU: Ignis Protect 45 deg / 90 deg version

Ignis Protect

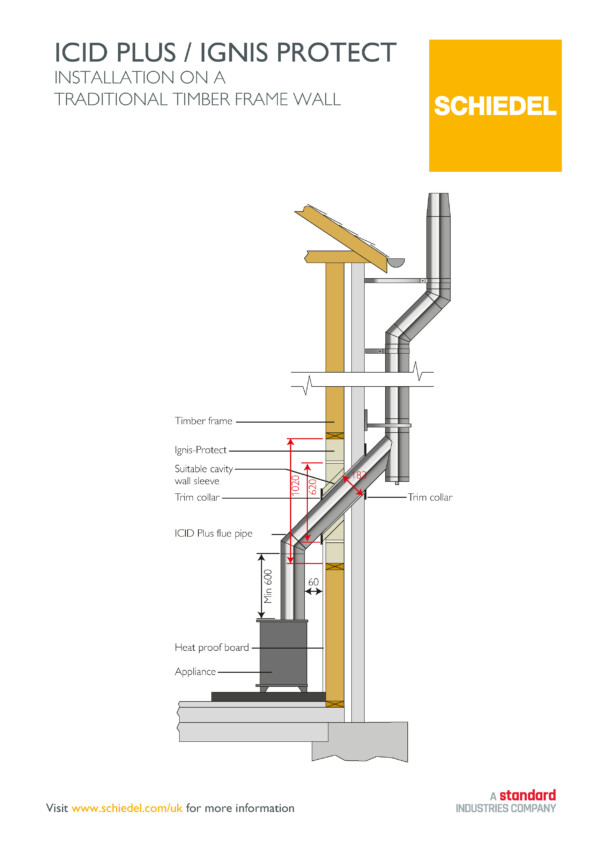

Schiedel Chimney Systems is designed to allow a chimney flue to pass through a combustible wall in a timber framed building.

In order to meet the latest European building regulations, specific leakage and performance criteria have to be met, which are much more stringent than in the past. These criteria are key in relation to chimney products passing through combustible walls.

SKU: Ignis Protect 45 deg / 90 deg version Categories: Steel Accessories, Universal Accessories, Air Tight Energy Efficient Range Tags: Accessories, Accessories BL Steel, Steel

Export Data Sheet as PDF

Available Options:

Description

Product Features

Suitable for SW and DW connecting flue pipes passing through interior or exterior walls made of combustible materials

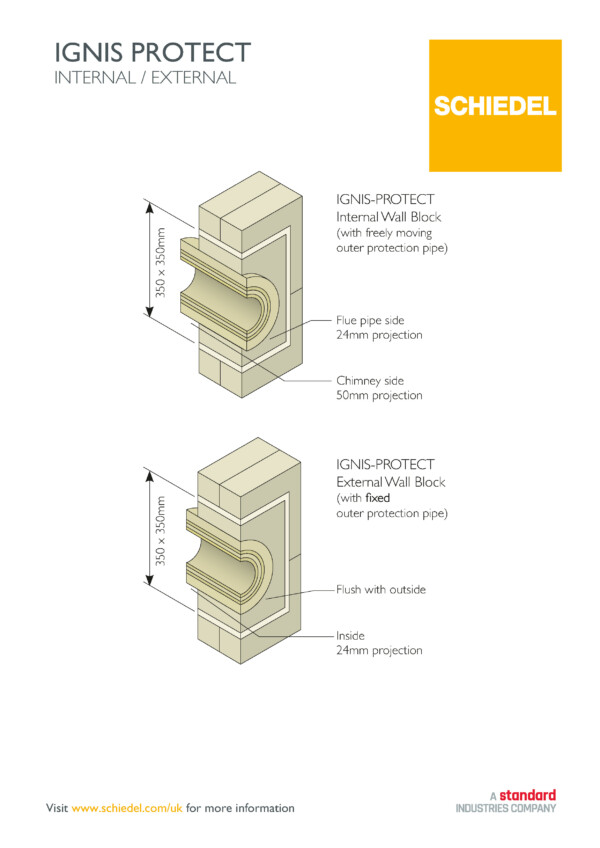

Available in two versions:
- For exterior walls (with aluminum lamination inside face)
- For interior walls (without aluminum laminate and with an extended removable core)

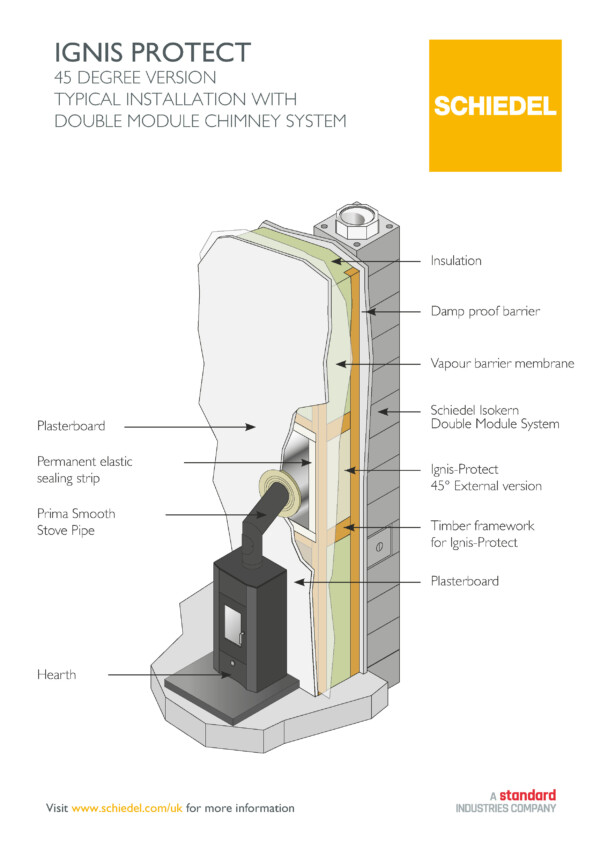

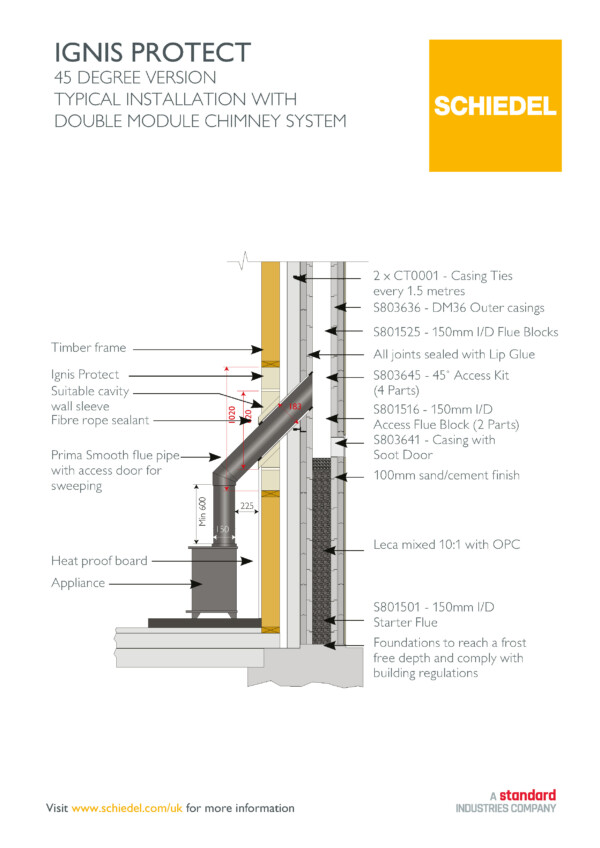

Available in both 90° and 45° versions
For flue gas temperature up to:
- 450 °C for SW connecting flue pipes (T450)
- 600 °C for DW connecting flue pipes(T600)
Max. 100 °C surface temperature during soot fire
Monolithic component made of mineral wool, density 120 kg/m, building material class A1
Internal face finished with aluminum laminate
External face made with textured surface to facilitate facade rendering
Removable pipe sections DN 125, 130, 150, 180, 200 mm
IGNIS-PROTECT can be used without any additional protection
Available in a range of standard wall thicknesses between 100mm -500mm
